1.) WNS Series Oil/Gas Fired Boiler                                  Back to page



Capacity : 1-20 t/h

Design pressure : 0.7 - 2.5 MPaG

Steam temperature : Saturated

Combustion type : Chamber

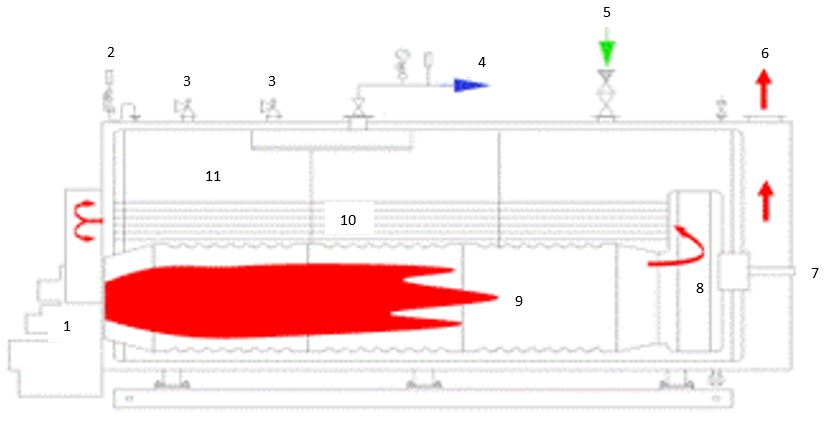

1. Burner                                       7. Fire Observation Port
2. Pressure Gauge 8. Furnace Gas Turning Zone
3. Safety Valve  9. Corrugated Furnace
4. Steam Outlet 10. Screw Thread Gas Tube
5. Boiler Feedwater 11. Steam Drum
6. Gas Exit



WNS series horizontal inner combustion oil / gas fired boiler



- Full wet back-style three gas pass, flashback configuration;

- Corrugated furnace desaign;

- Highly efficient heat transfer components;

- Screw thread gas tubes and corrugated furnace effectively absorb thermal expansion;

- Fully automatic burner and fully automatic control system.
